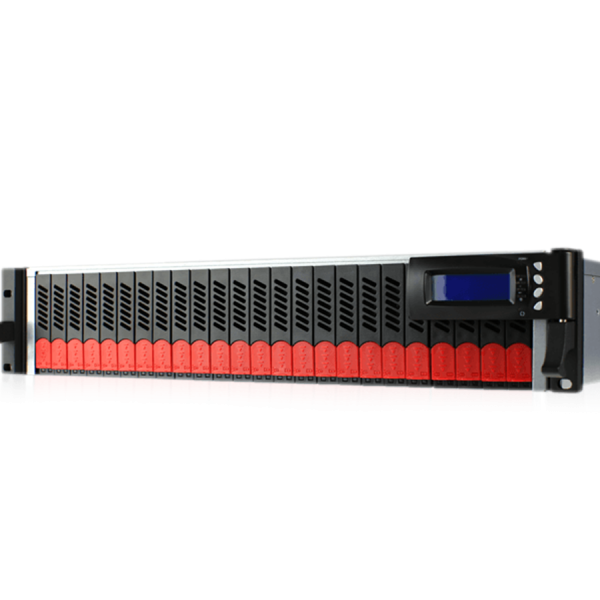

| Form Factor |
2U 24bay 2.5” |
| SSD I/F |
SFF8639 with PCIe Gen 3 (8GT/s) x4 |
| PCIe Switch Board |
Broadcom PEX9781, 8.0 GT/s 81-Lane PCI Express Gen 3 Switch |
| Power Supply |
Two 800W 80 PLUS Titanium power supplies |
| Dimension |
Rackmount 2U 19”480mm (W) x 88mm (H) x340mm (D) |
| System cooling |
Two 80mm (W) x 80mm (H) x38mm (D) FANs |
| LEDs indication |
SSD Activity(Blue),Present(White) and Fault(Red) LEDs |
| FAN Fault(Red) LEDs |
| PSU Fault (Red) LEDs |
| PCIe port link width (Red) and host port (Blue) LEDs |

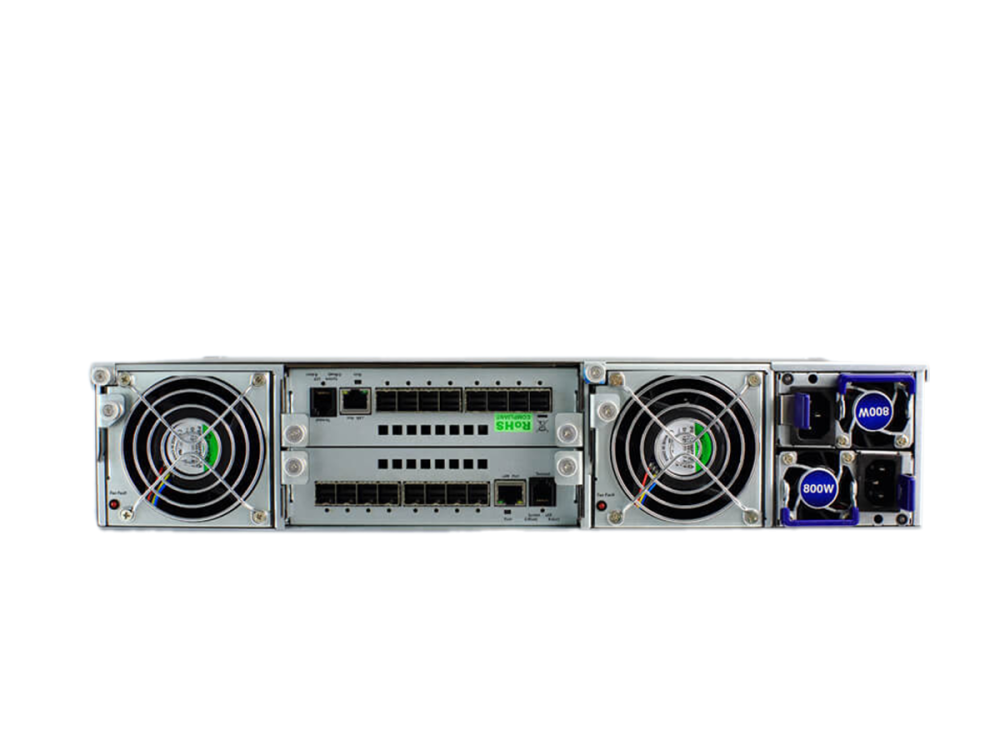

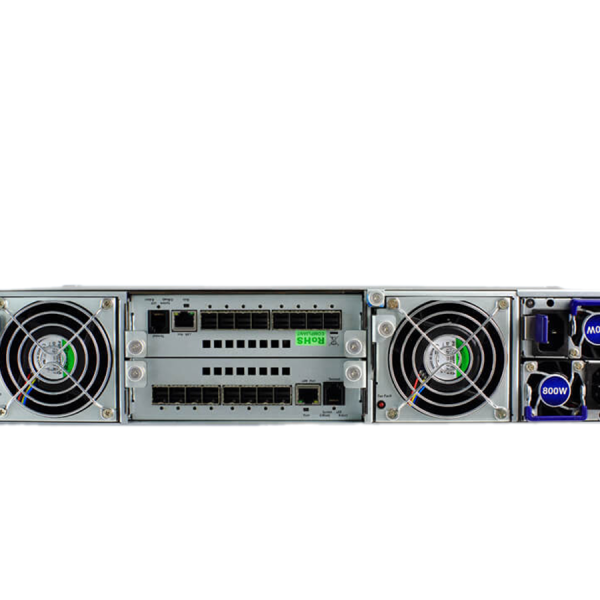

| Real I/O per switch board |
Two quad SFF-8644 connectors, RJ11 for UART, RJ45 Ethernet 10/100 port, Mute button |
| System Alarm |
Buzzer beeping for critical event(s) |
| (FAN, PSU, PCIe link Failure, Over Voltage(s)and Temperature(s) |
| I/O Capability |
Upstream bandwidth: PCIe Gen3 x 64, 512 GT/s |
| Downstream bandwidth: 24bays SSDs with PCIe Gen3 x 4 |
| Serviceability |
Hot-Swappable SSD (s), FAN(s), PSU(s),PCIe switch module(s) |
| LCD Module |
4 keys for function selection |
| 16 char x2 lines with white LED backlight |
| Warranty |
1-years warranty for system |
